Products

• Eddy Current (ECT): Non-ferromagnetic tubes
• RFT / RFA: Ferromagnetic tubes
• NFT / NFA: Finned tubes
• ECA (Array): High-resolution C-scan imaging

Tube Inspection Capabilities

• Internal (ID) and external (OD) defect detection
• Corrosion, erosion, and pitting analysis
• Circumferential and longitudinal crack detection
• Detection under support plates (baffle plates)
• Signal separation in finned tubes (NFT)
• High-speed C-scan imaging with ECA technology

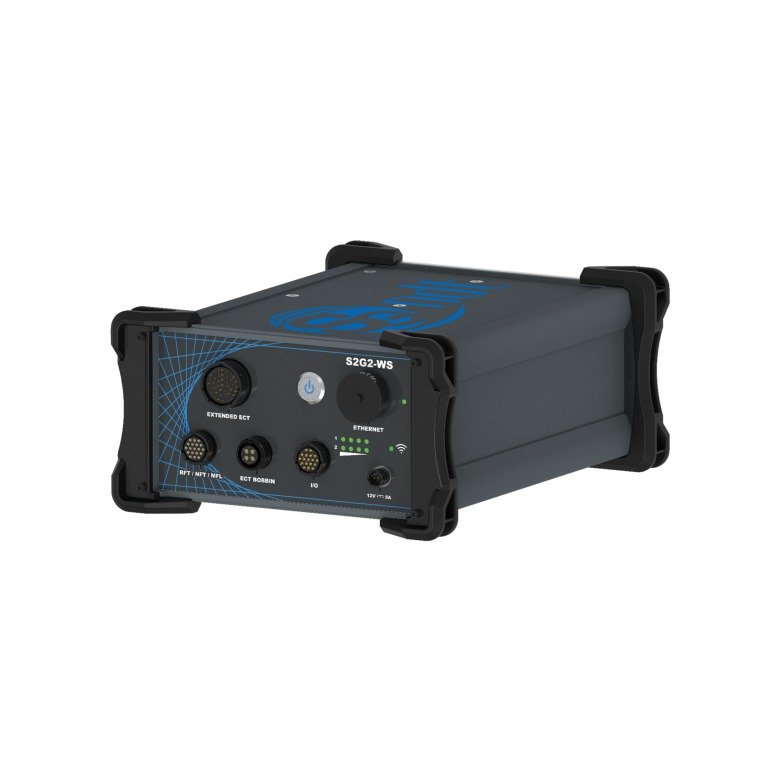

Technical Specifications

• Frequency Range: 20 Hz – 2 MHz
• Channel Configuration:
  • 8 probe inputs
  • Up to 5 simultaneous frequencies
• Data Rate: 100,000 data points/sec/channel
• Resolution: 32-bit
• Supported Technologies:
  • ECT / ECA
  • RFT / RFA
  • NFT / NFA
  • MFL
• Connectivity: Ethernet & Wi-Fi
• Battery Life: ~10 hours
• Protection Rating: IP55

Key Advantages (Tube Inspection)

• One device for multiple tube inspection methods
• Fast data acquisition with array technology
• High sensitivity for defect detection
• Compact and portable design
• Compatibility with existing probes and systems
• Easy integration with scanners and automated systems

Applications

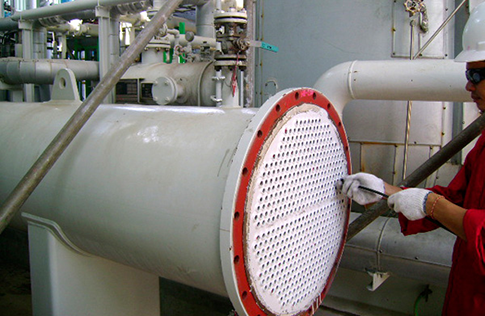

• Heat exchanger tubes
• Condenser tubes
• Boiler tubes
• Fin-fan air cooler tubes
• Oil & gas facilities
• Power plants
• Chemical and petrochemical industries
