Rondo Weld - Erw, Saw Welds (Paut, Emat)

Product Code :
Category : Online / Inline Systems

RONDO WELD is an advanced automated inspection system combining PAUT (Phased Array Ultrasonic Testing) and EMAT technologies for high-precision inspection of thick weld seams. It ensures reliable, high-speed weld inspection for pipe and tube manufacturing lines.

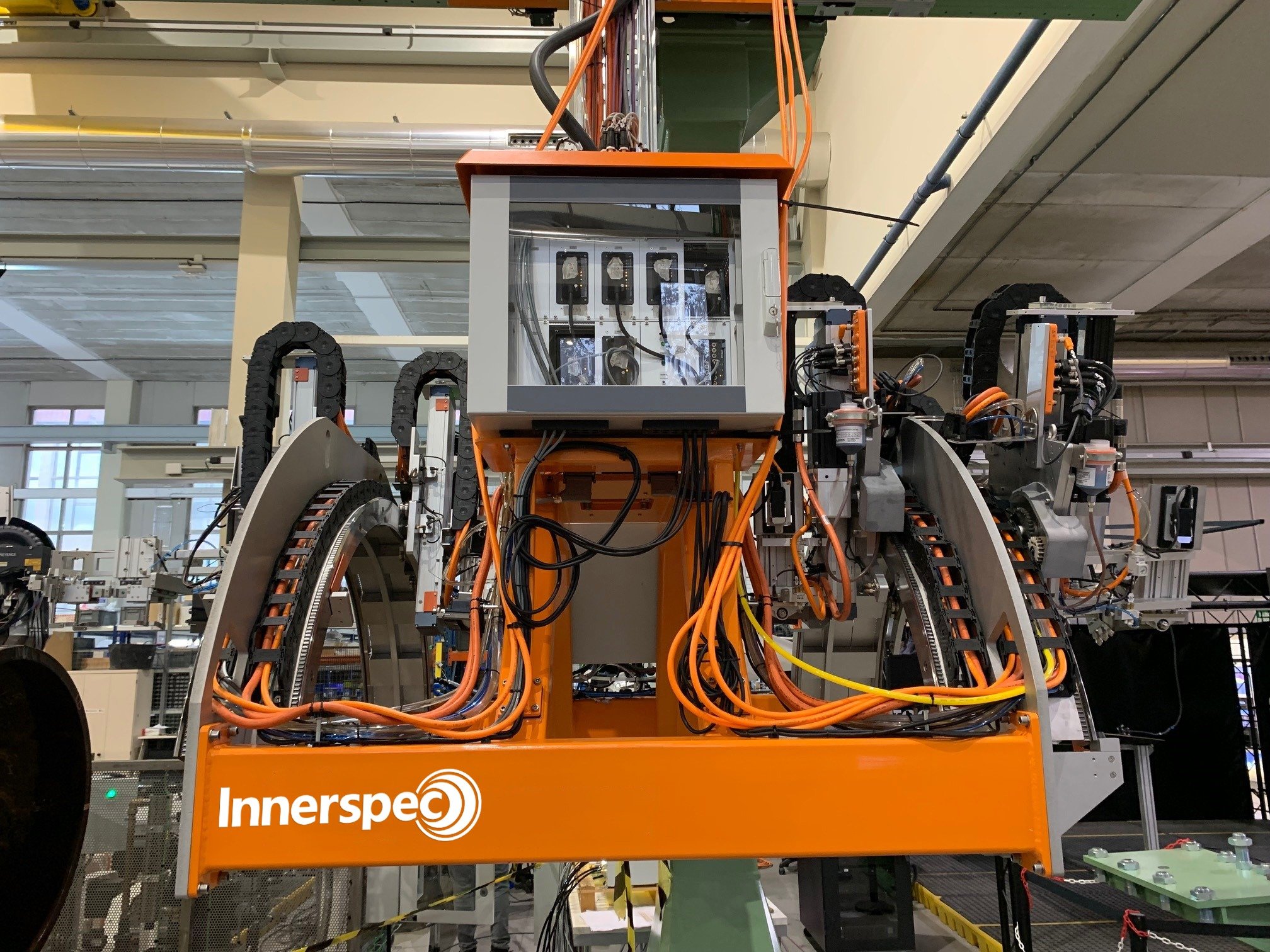

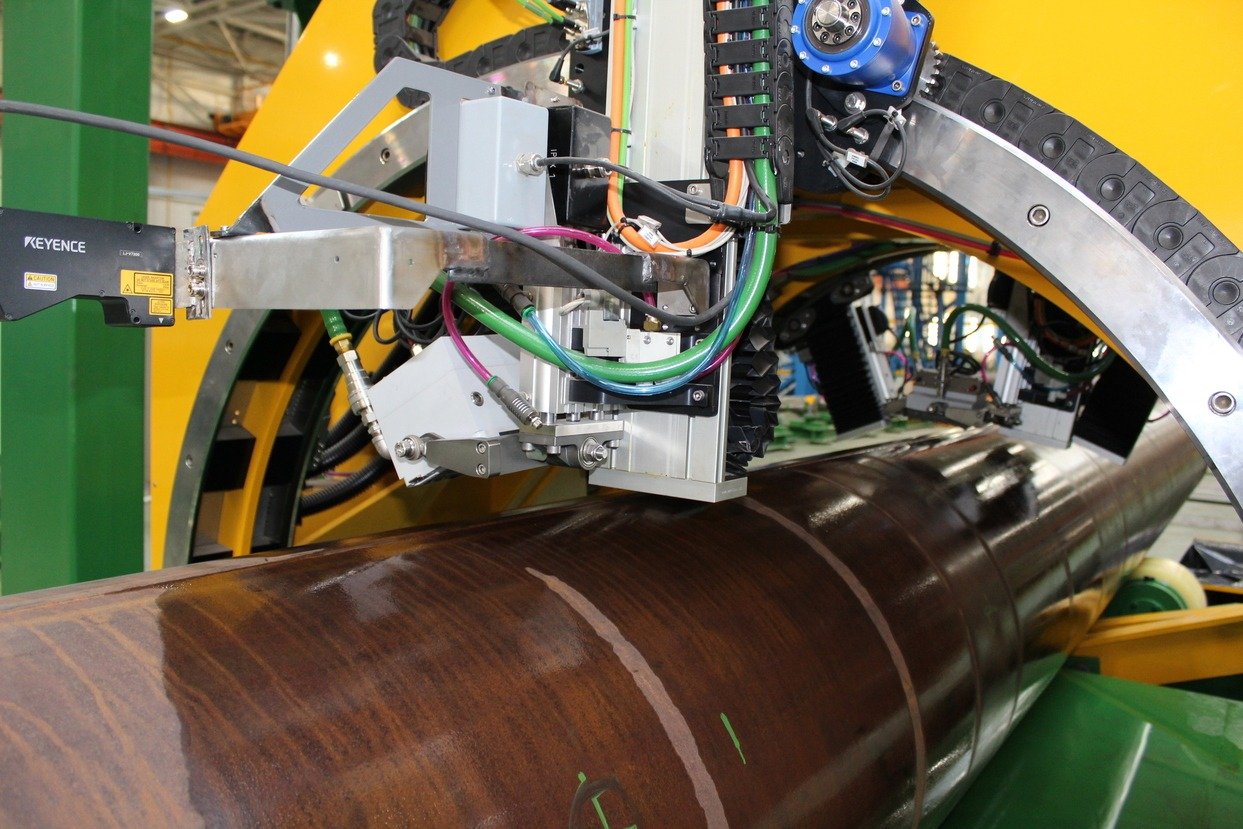

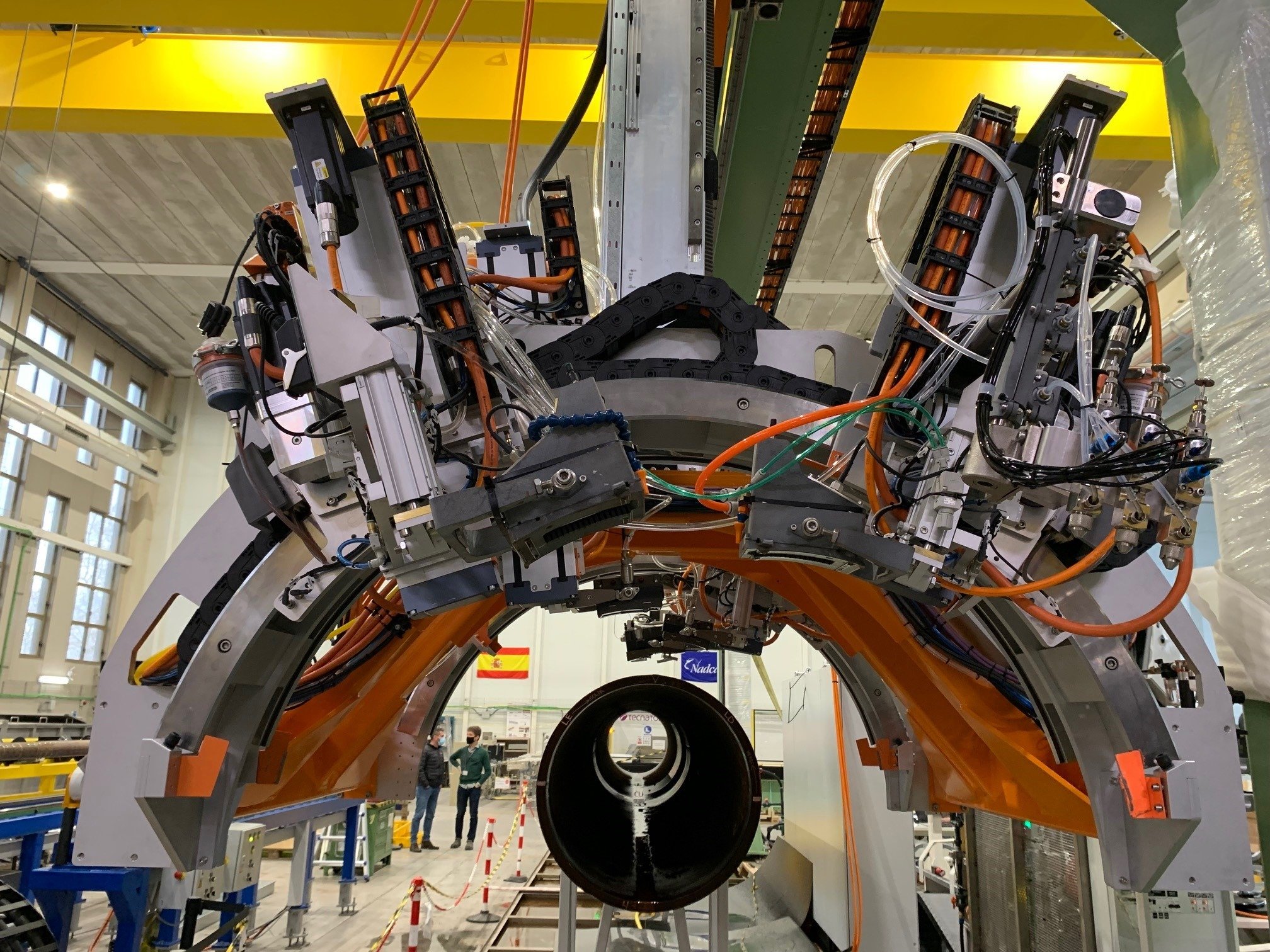

The RONDO WELD system automatically tracks the longitudinal weld seam on pipes and performs detailed inspection using advanced ultrasonic methods. With its gantry-based PAUT structure and non-contact EMAT capability, it provides flexible solutions for both offline and inline applications.

Technical Details

PAUT (Gantry / Offline System)

  • Inspection Method: Phased Array Ultrasonic Testing (PAUT)
  • System Type: Linear gantry with modular PAUT probe arrays
  • Applications: ERW and SAW pipe/tube welds
  • Diameter Range: 200 mm – 1400 mm
  • Scanning: Linear movement with automatic weld tracking
  • Coupling: Local immersion with acoustic membrane
  • Mechanical Design:
    • 3-axis (3 DOF) floating probe system
  • Automation:
    • Automatic diameter adjustment
    • Automatic probe positioning

EMAT (Inline System)

  • Inspection Method: EMAT (Electromagnetic Acoustic Testing)
  • Application: Real-time post-weld (hot) inspection
  • Material: Carbon steel (API grades)
  • Diameter Range: ~60 mm – 406 mm
  • Wall Thickness: ~5 mm – 16 mm
  • Advantage: Non-contact inspection (no couplant required)
  • Coverage:
    • Inner diameter (ID)
    • Outer diameter (OD)
    • Weld center zone

Detectable Defects

  • Hook cracks
  • Pinholes
  • Weld misalignment (mismatch)
  • Scarfing / burr defects
  • Inclusions and lack of penetration

Key Features

  • Combined PAUT + EMAT technologies for maximum inspection coverage
  • Suitable for both inline and offline inspection setups
  • Automatic weld tracking system
  • High-speed integration into production lines
  • Reduced water consumption with local immersion technology
  • Non-contact EMAT inspection for hot surfaces
  • Designed to meet international industry standards

Applications

  • ERW and SAW pipe manufacturing lines
  • Oil & gas industry
  • Energy and heavy industry
  • Steel production facilities
  • Pipeline manufacturing
