Rondo Hpc – High Pressure Cylinders Ultrasonic Inspection System

Product Code :
Category : Online / Inline Systems

RONDO HPC is a fully automated ultrasonic inspection system designed for high-speed, 100% volumetric testing of high-pressure cylinders. It also provides precise wall thickness mapping, ensuring reliable quality control in production lines.

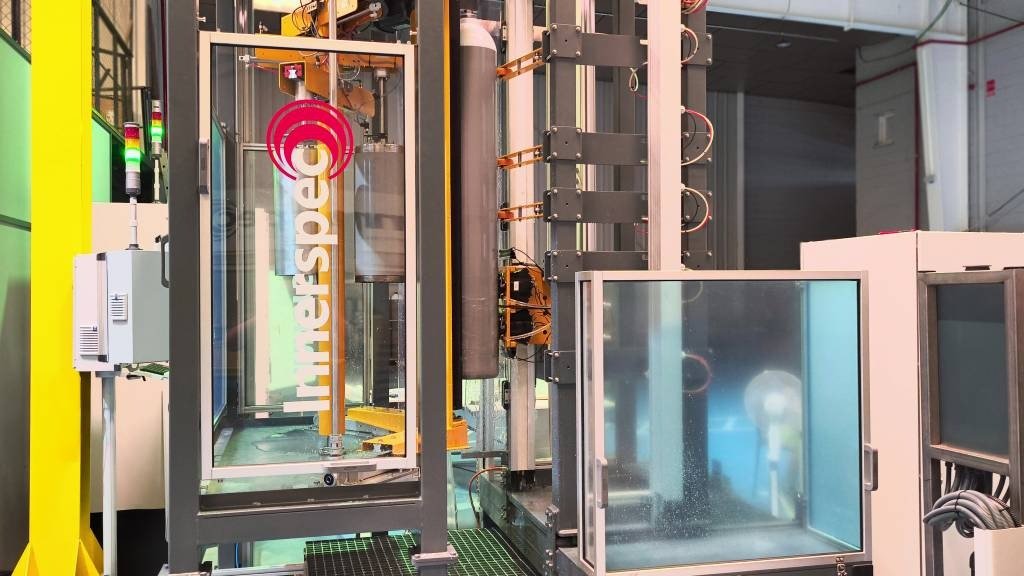

The RONDO HPC system is engineered for seamless integration into production lines. Cylinders are automatically loaded into the inspection station, where they rotate while sensors move axially. This synchronized motion ensures fast, repeatable, and highly accurate inspection results.

Technical Details

  • Inspection Method: Ultrasonic Testing (UT)
  • System Type: Rotation + axial scanning
  • Application: High-pressure gas cylinders
  • Capacity: 10 – 80 liters
  • Diameter Range: 140 – 267 mm
  • Height Range: 450 – 2000 mm
  • Materials: Steel and aluminum cylinders
  • Inspection Type: 100% volumetric inspection + thickness mapping
  • Scanning Mechanism:
    • Automatic rotation (up to 2 m/s)
    • Axially moving sensor system
  • Sensor Configuration:
    • Single or dual head
    • Up to 10-sensor cluster

Performance

  • Inspection Time: < 60 seconds per cylinder
  • Throughput: 60+ cylinders per hour
  • Calibration:

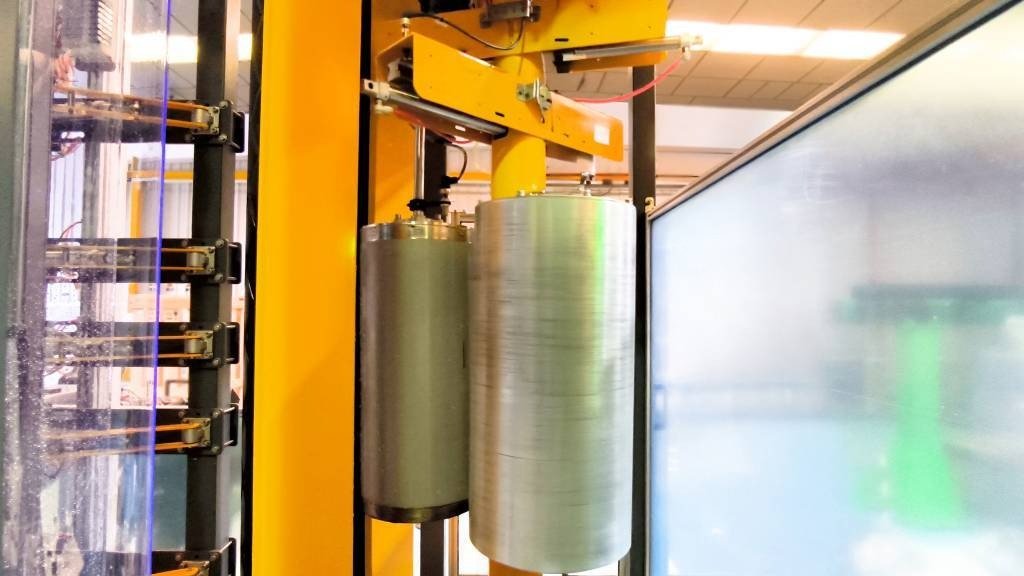

    • Integrated automatic calibration station
    • Capacity for 3 reference cylinders
    • Calibration time < 1 minute

Key Features

  • Full volumetric inspection with detailed thickness mapping
  • High-speed, fully automated inline operation
  • Uniform coverage with rotation + axial scanning
  • Advanced data outputs:
    • A-scan
    • C-scan
    • Strip chart
    • Automatic defect sizing
  • Seamless integration with vertical conveyor systems
  • Suitable for both steel and aluminum cylinders

Standards

  • Fully compliant with ISO 18119:2018 (including Annex B)

Applications

  • Industrial gas cylinder manufacturing
  • Oxygen, nitrogen, LPG cylinders
  • Fire extinguishers
  • Energy and petrochemical industries
  • Pressure vessel manufacturers
