Rollmate – Mill Roll Inspection System (Ut & Ec)

Product Code :
Category : Online / Inline Systems

ROLLMATE is an advanced automated inspection system designed for detecting surface and internal defects in mill rolls. By combining Ultrasonic Testing (UT) and Eddy Current (EC) technologies, it delivers high-speed, high-precision inspection for roll shop and production environments.

ROLLMATE is engineered to inspect both forged and cast mill rolls during or after grinding operations. Its multi-sensor architecture enables comprehensive defect detection across the entire roll surface and internal structure, ensuring reliable and repeatable results.

Technical Details

  • Inspection Methods:
    • Ultrasonic Testing (UT)
    • Eddy Current (EC)
  • Applications:
    • Mill rolls (work rolls, backup rolls)
    • Forged and cast rolls
  • Inspection Stage:
    • During grinding (inline)
    • After grinding (offline)
  • Sensor Configuration:
    • Up to 20 sensors (18 independent UT channels + EC channels)
  • Inspection Type:
    • Surface, subsurface, and deep volumetric inspection
  • Scanning:
    • Omni-directional ultrasonic scanning

Inspection Capabilities

  • Surface crack detection (down to ~0.1 mm)
  • Subsurface defect detection
  • Deep internal flaws (core defects, bond lines)
  • Shell thickness measurement
  • “Bruise” (soft spot) detection

Key Features

  • Hybrid UT + EC technology for maximum inspection coverage
  • Multi-directional defect detection capability
  • Simultaneous surface and volumetric inspection
  • Integration with grinding machines
  • Up to 4× faster than conventional inspection systems
  • Material-independent performance (suitable for various alloys)
  • Advanced visualization:
    • 3D roll imaging
    • C-scan mapping
    • Graphical analysis tools
  • Intelligent analysis for roll life assessment

System Features

  • Modular architecture – multiple NDT techniques in a single sensor unit
  • Flexible installation options:

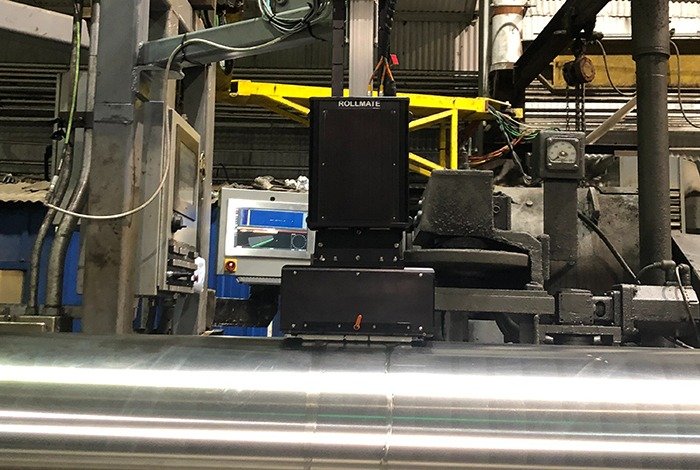

    • Mounted on grinding carriage
    • Independent actuator system
  • Fully automated inspection sequences
  • Integration with production and data management systems

Applications

  • Hot and cold rolling mills
  • Steel production facilities
  • Roll shop maintenance and service centers
  • Aluminum and non-ferrous production lines
